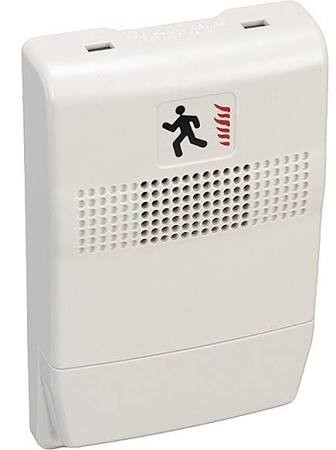

Edwards Signaling EG1-P genesis horn white

The EG1-P is a Genesis temporal security horn from GE Security combining high sound penetration with multiple frequency tones that give an unmistakable warning in the event of danger. The EG1-P temporal security horn comes with a UV stabilized plastic housing, 24VDC power, a white color appearance, an ability to reach as high as 99dB, a FIRE marking, plus a UL 1971 listing. This quality security horn may be wall or ceiling mountable, and is suitable for use with non-coded or coded signal circuits.

Features

Unique low-profile design

Four field-configurable options in one device

Fixed 15/75 cd model available

Easy to install

Unparalleled performance

Specs

Manufacturer Utc Fire & Security

Condition New

Housing white textured UV stabilized, color impregnated engineered plastic. Exceeds 94V-0 UL flammability rating.

Lens Optical grade polycarbonate clear

Wire connectionsScrew terminals single input for both horn and strobe. #18 to #12 AWG 0.75 mm ² to 2.5 mm ² wire size

Operating environment Indoor only 32-120 °F 0-49 °C ambient temperature. 93% relative humidity

Temporal audible pattern  ½ sec ON,  ½ sec OFF,  ½ sec ON,  ½ sec OFF,  ½ sec ON, 1 ½ sec OFF, then repeat cycle

Operating voltage series steady-tone horns: coded or non-coded, filtered 20-31 Vdc or unfiltered 20-27 Vfwr

Signal Dimensions HxWxD 4-1/2" x 2-3/4" x 13/16" 113 mm x 68 mm x 21 mm

Trimplate Dimensions HxWxD 5" 127 mm; Height "“ 5-7/8" 149 mm; Depth "“  ½" 13 mm
