Fire Lite Alarms ANNLEDW annunciator module 10 input

ANN-LEDW

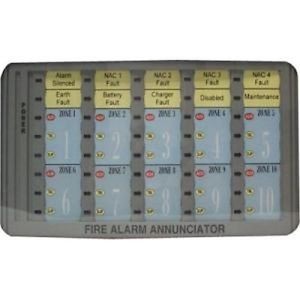

The ANN-LEDW annunciator module provides LED annunciation of general system faults and input zones/points when used with a compatible Fire Alarm Control Panel (FACP). The ANNLEDW module provides alarm (red), trouble (yellow) and supervisory (yellow) indication for up to ten input zones or addressable points. The ANN-LEDW is supplied standard with certain Canadian FACPs as required by ULC. The ANN-LEDW and the FACP communicate over a two-wire serial interface employing the ANN-BUS communication format. An additional two wires are used for 24-volt DC power. A single four-conductor unshielded cable may be used for both power and data communications. Up to eight ANN-BUS devices may be connected to the ANNBUS of each FACP.

Features

• ANN-LEDW connects to the ANN-BUS terminal on the FACP and requires minimal programming.

• Includes three LEDs for each zone: Alarm, Trouble and Supervisory.

• Compatible with the MS-9050UD, MS-5UD-3, MS-10UD-7, MRP-2001, MRP-2002, MS9200UDLS version 4.0 or greater, MS-9600LS and MS-9600UDLS.

• Can be remotely located up to 6,000 feet (1,829 m) from the panel.

• May be powered by 24 VDC from the host FACP or by remote power supply (requires 24 VDC).

Specifications

• Maximum ANN-BUS Voltage: 24 VDC

• Maximum Current: Alarm: 68 mA Standby: 28 mA

• Maximum wiring distance from FACP: 6,000 ft. (1,829 m.)

• Ambient Temperature: 32 ºF to 120 ºF (0 ºC to 49 ºC)

• Relative Humidity: 93%  ± 2% RH (noncondensing) at 32 ºC  ± 2 ºC (90 ºF  ± 3 ºF)

• For use indoors in a dry location

• Connections to FACP are power-limited and supervised.

• 5.160" (13.11 cm.) high x 10.043" ( 25.51 cm.) wide x 1.77" (4.5 cm.) deep.
