Fire Lite Alarms ANN-RLY relay board mnts in enclosure

ANN-RLY

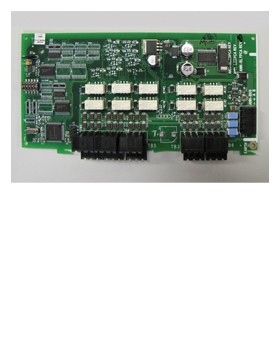

The ANN-RLY relay module provides 10 programmable Form- C relays when used with a compatible FACP (Fire Alarm Control Panel). The ANN-RLY module may be mounted inside the FACP main circuit board chassis, ROME or in the battery area of the enclosure using optional mounting bracket.

ANN-RLY  Features and Benefits

• ANN-RLY connects to the ANN-BUS terminal on the FACP and requires minimal programming.
• Provides 10 programmable Form-C relays.
• Ten Form-C relays can be programmed for various functions; Alarm, Trouble, Supervisory, AC Loss, Waterflow Delay, Input Zones and Silenceable Alarm.
• Compatible with the MS9600LS, MS-9600UDLS, MS-9200UDLS, MS-9050UD, MS-5UD-3, MRP-2001, MRP-2002and MS-10UD-7.
• May be powered by 24 VDC from the host FACP or by remote power supply
• Up to eight ANN-BUS devices may be connected to the ANN-BUS of each FACP.
