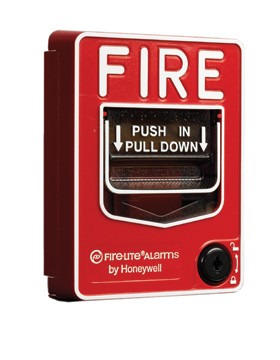

Fire Lite Alarms BG-12LSP dual actn pll sta spst n/o sw

BG-12LSP

The Fire ·Lite BG-12 Series is a cost-effective, feature-packed series of non-coded manual fire alarm pull stations. It was designed to meet multiple applications with the installer and end-user in mind. The BG-12 Series features a variety of models including single- and dual-action versions. The BG-12 Series provides Fire ·Lite Alarm Control Panels (FACPs), as well as other manufacturers"™ controls, with a manual alarm initiating input signal. Its innovative design, durable construction, and multiple mounting options make the BG-12 Series simple to install, maintain, and operate. BG-12LSP: key lock with English/Spanish (FIRE/ FUEGO) labeling.

Features:

• Aesthetically pleasing, highly visible design and color.

• Attractive contoured shape and light textured finish.

• Meets ADA 5 lb. maximum pull-force.

• Meets UL 38, Standard for Manually Actuated Signaling Boxes.

• Easily operated (single- or dual-action), yet designed to prevent false alarms when bumped, shaken, or jarred.

• PUSH IN/PULL DOWN handle latches in the down position to clearly indicate the station has been operated.

• The word "œACTIVATED" appears on top of the handle in bright yellow, further indicating operation of the station.

• Operation handle features white arrows showing basic operation direction for non-English-speaking persons.

• Braille text included on finger-hold area of operation handle and across top of handle.

• Multiple hex- and key-lock models available.

• U.S. patented hex-lock needs only a quarter-turn to lock/ unlock.

• Station can be opened for inspection and maintenance without initiating an alarm.

• Product ID label viewable by simply opening the cover; label is made of a durable long-life material.

• The words "œNORMAL" and "œACTIVATED" are molded into the plastic adjacent to the alarm switch (located inside).

• Four-position terminal strip molded into backplate.

• Terminal strip includes Phillips combination-head captive 8/32 screws for easy connection to Initiating Device Circuit (IDC).

• Terminal screws backed-out at factory and shipped ready to accept field wiring (up to 12 AWG/3.1 mm ²).

• Terminal numbers are molded into the backplate, eliminating the need for labels.

• Switch contacts are normally open.

• Can be surface-mounted (with SB-10 or SB-I/O) or semiflush mounted. Semi-flush mount to a standard single-gang, double-gang, or 4" (10.16 cm) square electrical box.

• Backplate is large enough to overlap a single-gang backbox cutout by 1/2" (1.27 cm).

• Optional trim ring (BG12TR).

• Spanish versions (FUEGO) available (BG-12LSP, BG-12LPSP).

• Designed to replace the Fire ·Lite legacy BG-10 Series.

• Models packaged in attractive, clear plastic (PVC), clamshell-style, Point-of-Purchase packages. Packaging includes a cutaway dust/paint cover in shape of pull station.

Construction

• Cover, backplate and operation handle are all molded of durable polycarbonate material.

• Cover features white lettering and trim.

• Red color matches System Sensor"™s popular SpectrAlert ® Advance horn/strobe series.
